CR2477 Batterys: Features, Specifications, and Applications

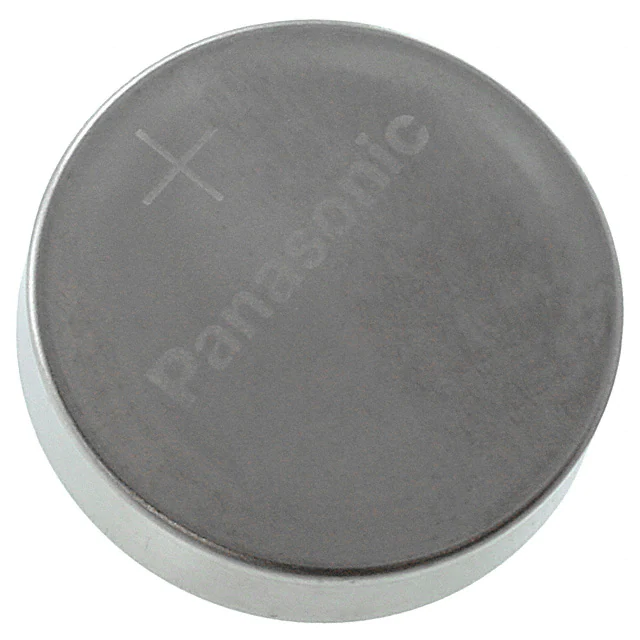

What Is a CR2477 Battery?

The CR2477 battery is a type of lithium coin cell designed to deliver a stable 3-volt output for long-term, low-drain electronic devices. Its designation "CR2477" provides insight into its structure - "CR" stands for lithium-manganese dioxide chemistry, "24" refers to its 24 mm diameter, and "77" indicates its 7.7 mm thickness. Compared with standard coin cells such as CR2032 or CR2025, the CR2477 has a much higher capacity, typically around 950–1000 mAh, making it ideal for devices that require both compact size and extended lifespan.

Key Features of CR2477 Lithium Coin Battery

• Nominal Voltage: 3V, suitable for most small electronic circuits.
• High Capacity: Up to 1000 mAh, offering 2–3 times the runtime of CR2032 batteries.
• Excellent Shelf Life: Retains over 90% of capacity after 10 years of storage.
• Wide Temperature Range: Works reliably between –30 °C to +70 °C.
• Leak-resistant Construction: Hermetically sealed stainless-steel casing prevents leakage and corrosion.
• Stable Discharge Curve: Provides constant voltage output until near end of life.

CR2477 Battery Specifications

How the CR2477 Battery Works

Inside the CR2477, a lithium anode and a manganese dioxide cathode are separated by a non-aqueous electrolyte. During discharge, lithium ions move from the anode to the cathode, releasing electrical energy at a steady 3 V. The low self-discharge rate (less than 1% per year) ensures that even after years in storage, the battery maintains sufficient voltage to power devices instantly when installed.

CR2477 Battery Applications

Because of its high capacity and compact form factor, the CR2477 battery is widely used in industrial and consumer electronics that require long-term reliability without frequent replacements. Common applications include:

• IoT and Smart Devices: Wireless sensors, Bluetooth beacons, temperature and humidity transmitters, and smart tags.
• Medical Equipment: Glucose meters, digital thermometers, and portable medical monitoring devices.
• Wearable Electronics: Fitness trackers, smartwatches, and heart-rate monitors.
• Keyless Entry Systems: Automotive key fobs and remote controls that need high pulse currents.
• Backup Power: Real-time clocks (RTC) and CMOS memory backup in industrial control systems.
• Consumer Electronics: Calculators, electronic toys, LED lights, and computer peripherals.

CR2477 vs. CR2032: What's the Difference?

While both batteries share the same 3 V chemistry, the CR2477 has a significantly larger size and nearly three times the capacity of a CR2032. If your device can accommodate the thicker form factor, upgrading to CR2477 offers much longer runtime and better performance in cold environments. However, always check device compatibility - some holders are designed only for thinner cells like CR2032 or CR2450.

Lifespan and Performance

A CR2477 coin cell can last from 3 to 10 years depending on usage and environmental conditions. Devices with intermittent low-current draw, such as wireless sensors or clocks, benefit from its long endurance. Even in high-drain applications, the battery provides consistent voltage with minimal drop-off, ensuring reliable operation until depletion.

Popular CR2477 Battery Brands

• Panasonic CR2477: Known for industrial-grade reliability and wide operating temperature.
• Energizer CR2477: Offers strong leak protection and long shelf life.
• Maxell CR2477: Japanese-made precision coin cell with stable discharge curve.
• Renata CR2477: Swiss quality, popular in medical and wearable applications.
• Murata CR2477: Advanced Japanese brand favored by IoT manufacturers.

Storage and Safety Tips

• Store in a cool, dry place below 25 °C to extend shelf life.
• Keep away from metal objects to prevent short-circuiting.
• Do not recharge or expose to high temperatures or fire.
• Dispose of used batteries according to local recycling regulations.
• Keep out of reach of children - coin cells can pose a choking hazard.

Equivalent and Replacement Batteries

The CR2477 battery is often interchangeable with models like DL2477 (Duracell), ECR2477 (Energizer), or BR2477 (Panasonic). Be cautious, though - BR2477 uses bromine-based chemistry, offering better high-temperature stability but slightly lower capacity. When choosing replacements, match both voltage (3 V) and size (24 × 7.7 mm) for safe compatibility.

Frequently Asked Questions (FAQ)

1. Can I replace a CR2032 with a CR2477?

Only if your device's battery holder supports the extra thickness. The CR2477 offers much longer life but is physically larger than a CR2032.

2. Is the CR2477 rechargeable?

No, the CR2477 is a primary lithium cell and should never be recharged. If you need a rechargeable option, look for Li-ion rechargeable coin cells such as LIR2477.

3. How long does a CR2477 battery last?

Typically between 3 and 10 years depending on power consumption and environmental conditions. In low-drain IoT sensors, it can last close to a decade.

4. What are the best storage practices?

Store CR2477 batteries at room temperature, away from humidity and sunlight. Keeping them in original packaging prevents short-circuiting and contamination.

Conclusion

The CR2477 lithium coin battery stands out as one of the most durable and high-capacity options among 3-volt coin cells. Its combination of long shelf life, strong performance across wide temperature ranges, and compatibility with many industrial and consumer devices makes it a top choice for engineers and everyday users alike. Whether you're powering a Bluetooth beacon, a medical monitor, or a key fob, the CR2477 ensures dependable, long-lasting energy in a compact form.
